Analog Temperature Sensor

Meer afbeeldingen

  • Analog Temperature Sensor TSA01
  • Analog Temperature Sensor TSA01

Analog Temperature Sensor

Artikelnummer:

TSA01

Beschikbaarheid: In voorraad

€7.19
€ 7,19
0 Incl. BTW: € 8,70

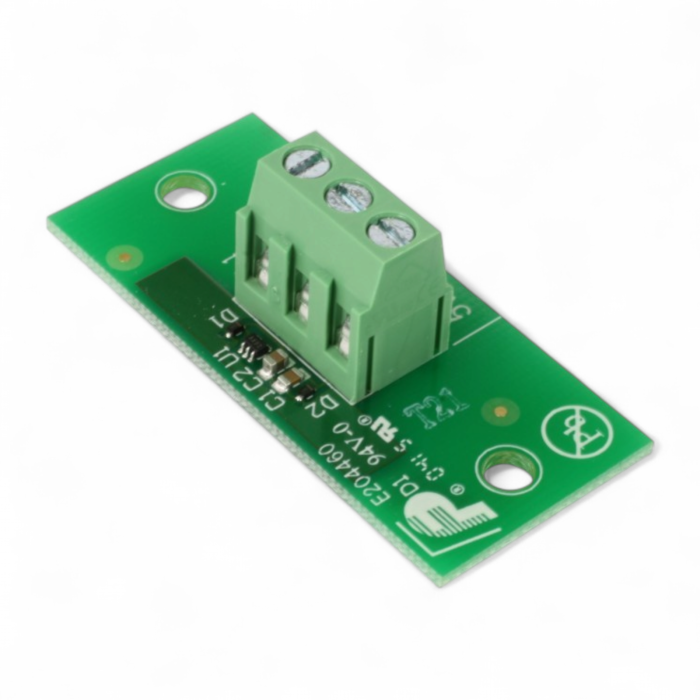

The TSA01 is a voltage output temperature sensor module employing Microchip's MCP9700A sensor.

  • Power - 2.3v to 5.0v, >6uA (typical)
  • Output - 10.0 mV/°C (typical)
  • Output Voltage at 0°C - 500mV
  • Range - -40°C to +125°C
  • Accuracy - ±1°C (typ.) ±2°C (max.), 0°C to +70°C


More information is available in the manual.
