GPS Antenna Ground Plate

Item no.:
GPS-17519
€ 8,41 € 6,95
Op voorraad

Customer Reviews

Beoordeeld met 9.0 van 10 - Gebaseerd op 1733 reviews

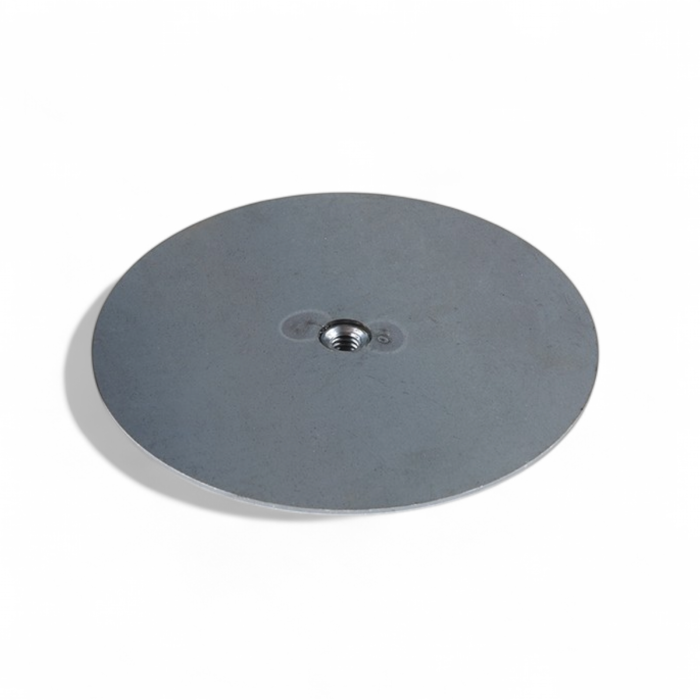

Want to improve your GPS antenna multipath convergence time performance to near survey-grade GNSS levels? Just using this simple steel plate effectively improves simple patch antenna performance to near professional level antenna setups.

The steel disc provides a ground plane for a low cost u-blox ANN-MB-00 antenna and enables centimeter-level positioning when coupled with a L1/L2 capable GNSS receiver such as the ZED-F9P.

The 1.6 mm thick steel plate fits onto the standard ¼-20 UNC camera mounting screw. While it is not the cleanest piece of steel and weighs in at a hefty 0.2 kg, it does provide a solid base to allow a GPS Magnetic Mount Antenna to sit flat on the ground plane while mounted to a tripod.

See also Ublox white paper on using low cost antennas for RTK.

Moer information is available on the website of Sparkfun.
